AUTO-HPU
Joint Make-Up
Smart Power Units For Connection Integrity
AUTO-HPU
AUTO-HPU
Joint Make-Up
Intelligent Technology
Cheetah’s smart AUTO-HPU™ delivers A.I. driven connection make-up results, improving tubular running operations.

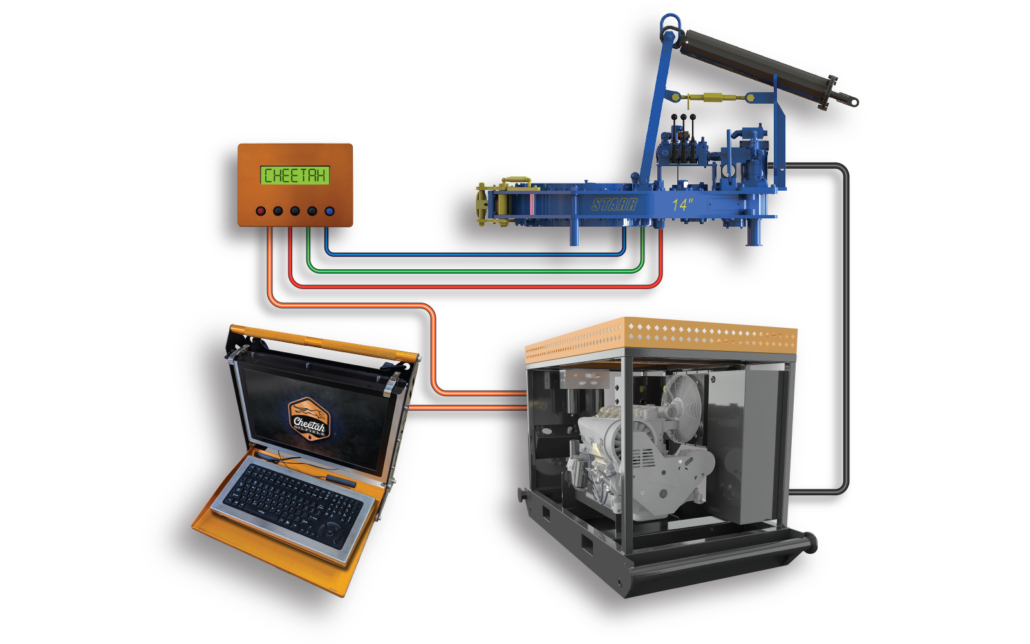

The AUTO-HPU™ controls speed and torque at the power source.
Smart Power
Cheetah’s AUTO-HPU™ eliminates connection issues from excessive RPM, over-torquing and tong operator error.
It is fully compatible with computer torque monitoring systems.

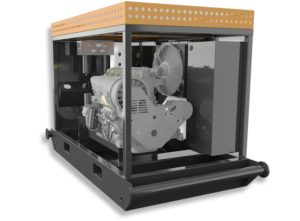

Smart Power Unit
Intelligent control
Powered by Cheetah PLC Software.
Lower equipment costs
Automate any power tong with a Cheetah Power Unit.
The control you need
Set limits for flow (speed) and pressure (torque) when you need accuracy, safety and production.
Powerful performance
Compatible with any power tong.
No more damaged pipe
Our power unit is designed to optimize your connections.
Premium quality
Superior and efficient build quality.
Diesel or electric
Multiple build configurations.
Custom options
Hose reels, baskets, MPI pickup points.
Protect your workers
Remote and automated systems allow emergency intervention.
Specifications
Diesel AUTO-HPU™
Specifications
| Engine Size: | 74 Hp. 4 Cylinder Tier 4F Diesel Engine |
| Fuel Tank Capacity: | 30 gal (114 L) |
| Pump: | Variable Piston |
| Emergency Shut Off: | PAS System (Positive Air Shut Off) |
| Hydraulic Tank Capacity: | 30 gal (114 L) with Temperature Control |
| Dimensions: | 95” l x 52” w x 60” h (2.41m x 1.32m x 1.52m) |
| Dry Weight: | 3200 lb. (1450 kg) |
| Flow Rate: | Up to 60 gpm Max. (227 L/min) |
| Pressure: | Up to 3000 psi Max. (20.68 MPa) |
| Control Methods: | Limit Flow to Control Speed |
| Control Methods: | Limit Pressure to Control Torque |
| Optional Accessories: | Remote Shut Down, Hose Reels |
Electric AUTO-HPU™
Specifications
| Power Configuration A: | 575 / 600 VAC, 60 AEngine Size: |
| Power Configuration B: | 460 / 480 VAC, 100 A |
| Pump: | Variable Piston |
| Emergency Shut Off: | Emergency Shut Down |
| Hydraulic Tank Capacity: | 30 gal (114 L) with Temperature Control |
| Dimensions: | 95” l x 52” w x 60” h (2.41m x 1.32m x 1.52m) |
| Dry Weight: | 3000 lb. (1360 kg) |
| Flow Rate: | Up to 60 gpm Max. (227 L/min) |
| Pressure: | Up to 3000 psi Max. (20.68 MPa) |
| Control Methods: | Limit Flow to Control Speed |
| Control Methods: | Limit Pressure to Control Torque |
| Optional Accessories: | Remote Shut Down, Hose Reels |
